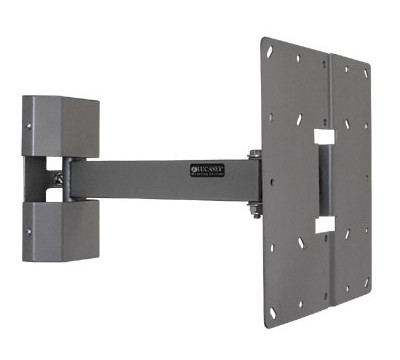

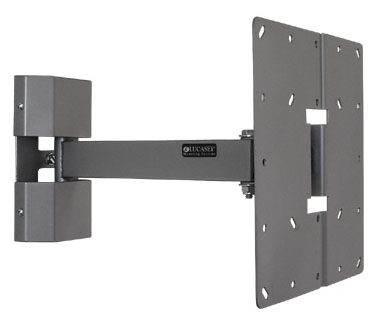

Suitable for wood, metal or concrete wall mounting applications, this Lucasey LC200WA2 Articulating TV Wall Mount features articulating pivot points, 180 degree swivel from wall arm and ±45 degree tilt (may be limited by size of monitor). The model allows landscape (horizontal) or portrait (vertical) mounting of the monitor and supports a load up to 50 pounds. The cosmetic covers provide a clean look over the strongest single stud wall plate design. Articulating wall mount for 20 inch to 32 inch monitors with up to 200 (7.88 inch) x 200 Millimeter (7.88 inch) VESA mounting patterns. Choose from silver or gloss black finish.
|
|
|
|
|
|
|
|
|
|
|
|
-
TV Size: 20.00 - 32.00 in
-
Styles: Adapter mount
-
Length: 8.75 in
-
Weight Capacities: 50.00 lbs
-
Finish/Color: Silver, Gloss black
-
Tilts: ±45 Deg
-
Swivels: 180 Deg
-
Width: 9.00 in
-
Maximum Wall Extension: 2.75 - 12.00 in
-
VESA: Up to 200 mm
-
Package Weight: 7 lbs
-
Included: 4, 5, 6 mm hardware kit, (3) #14 x 2.5 inch HWH tapping screws for attachment to a wood stud with drywall
-
Not Included: Hardware for metal studs
-
 Installation Instruction
-
Specification Sheet
Product Overview & Specs
Suitable for wood, metal or concrete wall mounting applications, this Lucasey LC200WA2 Articulating TV Wall Mount features articulating pivot points, 180 degree swivel from wall arm and ±45 degree tilt (may be limited by size of monitor). The model allows landscape (horizontal) or portrait (vertical) mounting of the monitor and supports a load up to 50 pounds. The cosmetic covers provide a clean look over the strongest single stud wall plate design. Articulating wall mount for 20 inch to 32 inch monitors with up to 200 (7.88 inch) x 200 Millimeter (7.88 inch) VESA mounting patterns. Choose from silver or gloss black finish.
- Dual articulating pivot points and 180 Deg. swivel from wall arm
- Landscape (horizontal) or portrait (vertical) mounting
- Supports a load up to 50 lbs
- Cosmetic covers provide a clean look over the strongest single stud wall plate design
- Suitable for wood, metal or concrete wall mounting applications
- Select from silver or gloss black finish
|
|
|
