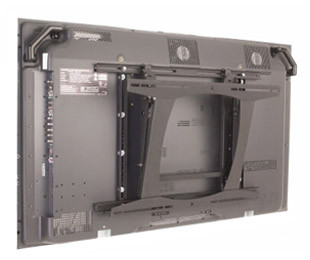

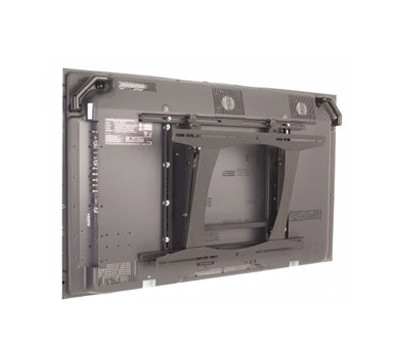

As a ultimate tilt wall mount for large flat panel displays, this ultra low profile design Chief Fusion PLP Series Pull-N-Tilt Plasma Wall Mount provides installers with time saving features and end-users with fingertip tilt control. Its patented Pull-N-Tilt mechanism provides fingertip tilt adjustment from 0 to 15 Degrees. Its bottom pulls out 3 inch for simplified cable access. Made of steel components for a rock-solid solution, this TV Wall Mount features Q-Latch mounting system which simplifies installation, and expanded wall plate opening that provides cable access and reduces risk of outlet interference. Its Rapid level system provides hands-free leveling of mount on wall. Its interface brackets are compatible with all other 2000 series products. This black colored TV Wall Mount allows for 16, 20, 24 inch center stud system mounting and provides integrated security.
|
|
|
|
|
|
|
|
|
|
|
|
-
TV Types: Plasma
-
Styles: Platform
-
Material: Heavy gauge solid steel
-
Length: 26 in
-
Weight Capacities: 200 lbs
-
Finish/Color: Black
-
Tilts: 0 to 15 Deg
-
Width: 1.5 in
-
Height: 18.3 in
-
Wall Clearance: 1.52 in
-
Mount Type: Universal
Product Overview & Specs
As a ultimate tilt wall mount for large flat panel displays, this ultra low profile design Chief Fusion PLP Series Pull-N-Tilt Plasma Wall Mount provides installers with time saving features and end-users with fingertip tilt control. Its patented Pull-N-Tilt mechanism provides fingertip tilt adjustment from 0 to 15 Degrees. Its bottom pulls out 3 inch for simplified cable access. Made of steel components for a rock-solid solution, this TV Wall Mount features Q-Latch mounting system which simplifies installation, and expanded wall plate opening that provides cable access and reduces risk of outlet interference. Its Rapid level system provides hands-free leveling of mount on wall. Its interface brackets are compatible with all other 2000 series products. This black colored TV Wall Mount allows for 16, 20, 24 inch center stud system mounting and provides integrated security.
- Enables easy installation
- Gravity-centered tilt
- Integrated lateral shift up to 9" to 2" left/right of 16" stud system without disassembly
- Built-in cable management channels inside the arms
- Q-Latch mounting
- Remains low-profile in home position extends 37"
- Post-installation height adjustment up to 3" for ultimate installation flexibility
- Independently adjustable tension at pivot points
- Wall protection rubber stops
- Select from black or silver color
|
|
|
